Jandy

Jandy SFSM Side-Mount Sand Filter 30", 100 gpm, 50 psi

$1,830.95

3 in stock

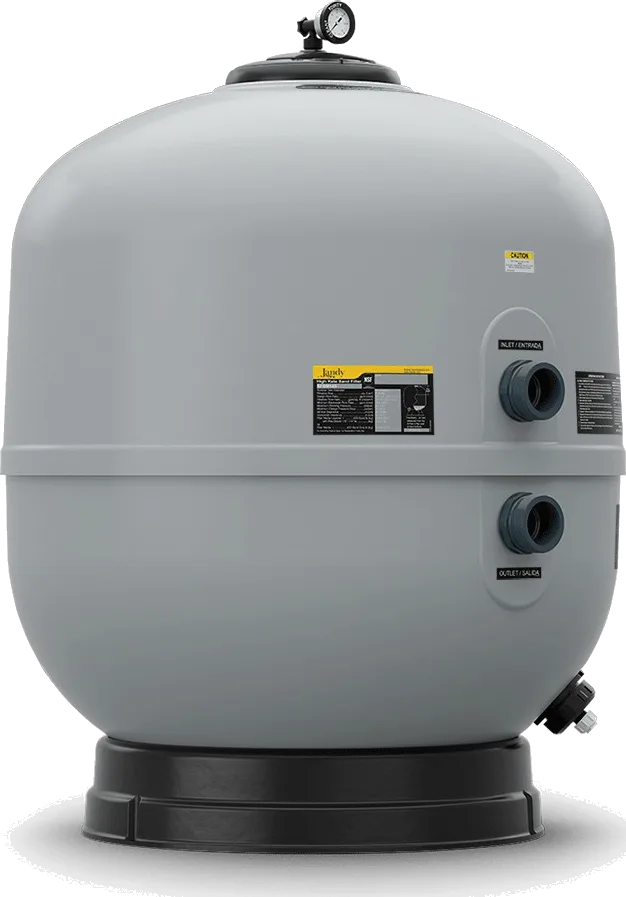

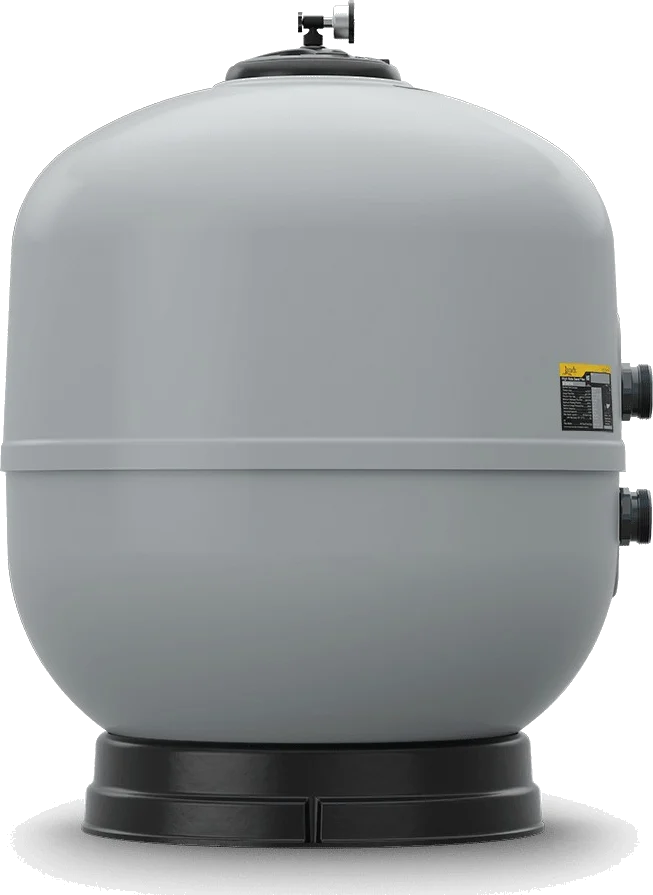

Side-mount sand filter for residential pool filtration that removes particulates through a sand media bed. Designed for replacement of existing residential filters and for new installations where a side-mounted valve is preferred. The unit features a molded tank, 2" inlet/outlet connections via Jandy unions, and a clamp-style valve to simplify installation and service.

• 5.0 sq. ft. sand area for particle removal
• Rated to 100 gpm and 50 psi for typical pool systems
• Side-mount valve with 360° clamp-style rotation for easy alignment
• Connects using two 2" x 2½" Jandy unions, unions not included
• Combination water/sand drain for simplified maintenance
• Fitted pressure gauge with clean/dirty indicator and manual bleed valve
• Laminated polyester and fiberglass resin tank construction

Diameter

30 in.

Flow Rate

100 gpm

Maximum Working Pressure

50 psi

Pool Type

In-Ground

MFG Number

SFSM100

Commercial or Residential

Commercial

UPC

052337075688

Effective Filtration Area

5 sq ft

Series/Model

SFSM
